Caddx Turbo S1 1/3 CCD 600TVL IR Blocked FPV Camera Yellow/Green NTSC/PAL DC 5V-40V Wide Voltage
![]()
Caddx Turbo S1 1/3 CCD 600TVL IR Blocked FPV Camera Yellow/Green NTSC/PAL DC 5V-40V Wide Voltage
Available:
Out of Stock
Wishlist
Compare
- Product SKU: 1188080-Green-NTSC
- Category: FPV camera, FPV System - Buy FPV RC Acessories & Parts at Drone4Racing
$22.74
Caddx Turbo S1 1/3 CCD 600TVL IR Blocked FPV Camera Yellow/Green NTSC/PAL DC 5V-40V Wide VoltageCaddx Turbo S1 1/3 CCD 600TVL 4:3 2.1mm M10 Lens FPV Camera Yellow/Green NTSC/PAL DC 5V-40V Wide Voltage
Compare with other camera:

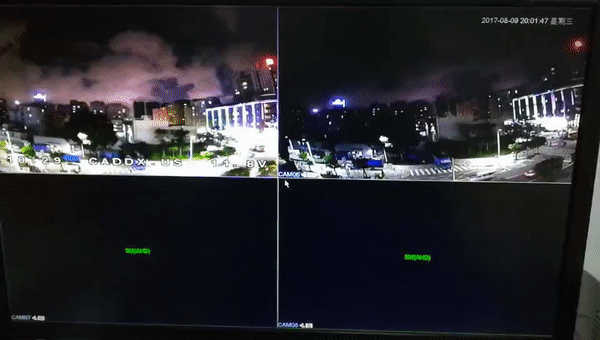

Night(Caddx on Left ):

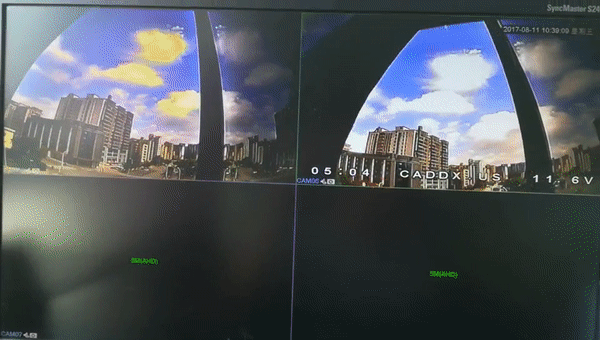

Daytime (Caddx on right ):
Description
Ratio 4:3
Package Included
,
,
,
,
,
,
Compare with other camera:
Night(Caddx on Left ):
Daytime (Caddx on right ):
Description
| Model | Turbo S1 |
| Image Sensor | 1/3" CCD Sensor |
| Horizontal Resolution | 600 TVL |
| TV System | NTSC/PAL |
| Synchronization | Internal |
| Electronic Shutter | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
| S/N Ratio | >60dB (AGC OFF) |
| Video Output | CVBS |
| Lens | 2.1mm |
| Lens Screw Diameter | M10 |
| Min. Illumination | 0.01Lux@F1.2 |
| Auto Gain Control | YES |
| BLC | YES |
| FLY OSD | Voltage/time/horizontal line/title |
| Camera OSD | YES |
| WDR | D-WDR |
| DNR | 2 DNR |
| Day/Night | Auto/Color/B&W |
| Connector | Molex PicoBlade 1.25mm 4P |
| Wide Power Input | DC 5-40V |
| Work Temperature | -20℃~+60℃ |
| Work Humidity | 20%~80% |
| Dimensions | 22mm*22mm*27mm |
| Weight | 12g (N.W.)/ (G.W.) |
Package Included
1 x Caddx Turbo S1 600TVL Camera
1 x 5D-OSD Menu Board
1 x ABS+PV Bracket
1 x Aluminum Bracket
1 x 4pin FPV silicone cable (extend into a 2pin joint for OSD board and a 3pin joint for FPV)
1 x Screws set
1 x Manual
,,,,,,
Caddx Turbo S1 1/3 CCD 600TVL IR Blocked FPV Camera Yellow/Green NTSC/PAL DC 5V-40V Wide VoltageCaddx Turbo S1 1/3 CCD 600TVL 4:3 2.1mm M10 Lens FPV Camera Yellow/Green NTSC/PAL DC 5V-40V Wide Voltage
Compare with other camera:
Night(Caddx on Left ):
Daytime (Caddx on right ):
Description
Ratio 4:3
Package Included 1 x Caddx Turbo S1 600TVL Camera 1 x 5D-OSD Menu Board 1 x ABS+PV Bracket 1 x Aluminum Bracket 1 x 4pin FPV silicone cable (extend into a 2pin joint for OSD board and a 3pin joint for FPV) 1 x Screws set 1 x Manual,,,,,,
Compare with other camera:
Night(Caddx on Left ):
Daytime (Caddx on right ):
Description
| Model | Turbo S1 |
| Image Sensor | 1/3" CCD Sensor |
| Horizontal Resolution | 600 TVL |
| TV System | NTSC/PAL |
| Synchronization | Internal |
| Electronic Shutter | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
| S/N Ratio | >60dB (AGC OFF) |
| Video Output | CVBS |
| Lens | 2.1mm |
| Lens Screw Diameter | M10 |
| Min. Illumination | 0.01Lux@F1.2 |
| Auto Gain Control | YES |
| BLC | YES |
| FLY OSD | Voltage/time/horizontal line/title |
| Camera OSD | YES |
| WDR | D-WDR |
| DNR | 2 DNR |
| Day/Night | Auto/Color/B&W |
| Connector | Molex PicoBlade 1.25mm 4P |
| Wide Power Input | DC 5-40V |
| Work Temperature | -20℃~+60℃ |
| Work Humidity | 20%~80% |
| Dimensions | 22mm*22mm*27mm |
| Weight | 12g (N.W.)/ (G.W.) |
Package Included 1 x Caddx Turbo S1 600TVL Camera 1 x 5D-OSD Menu Board 1 x ABS+PV Bracket 1 x Aluminum Bracket 1 x 4pin FPV silicone cable (extend into a 2pin joint for OSD board and a 3pin joint for FPV) 1 x Screws set 1 x Manual
,,,,,,
